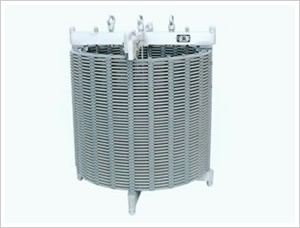

LT-130

High Frequency Line Trap

Application: LT-130 line traps are connected in series with the high-voltage lines and used for transmission of 20~500KHz speech, energy management data and power system protection signals. The purpose of PLC line traps: Make the defined impendence on power line terminal and reduce loss of carrier signal. Isolate the RF signal from other sections of power line. The PLCs on different sections could use same frequency band

Features:

LT-130 line traps are suitable for power line of 220KV and below.

• Low weight and easier to suspend.
• Solid construction permits high mechanical loads on terminals.
• Low-loss & energy-saving
• Continuous current margin is wide. High fault current due to open construction for better cooling
• The surge arrester protects the main coil and tuning device against over-voltages.
• Provide customized design according to user requirements on dimensions and short current.
• Designed according to the latest IEC recommendations
